ANPR Cantilever Sliding Gate

Product Introduction

Automatic cantilever sliding gate is a non-wheel contact with the ground, no running track, no embedded guide rail, hanging walking gate, with a certain solid and durable, on-site assembly, no wheel trackless, end no fulcrum characteristics, widely used in industrial parks, factories, residential areas and government agencies, its safe and reliable performance and scientific and reasonable design received the majority of users. The automatic cantilever sliding gate is composed of aluminum alloy  body and motor.

Feature

Product Specifications

ANPR cantilever gate design LPR auto sliding gate QiGong

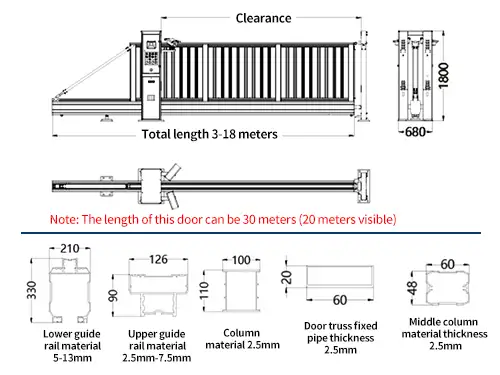

Cantilever Sliding Gate Parametric Graph QiGong
  • The limit length of the automatic cantilever sliding gate body is 18 meters (see light 12 meters), the automatic sliding gate body running speed: 12 meters per minute, motor power: 450W.
  • The front section of the automatic cantilever sliding gate is equipped with anti-collision rubber strips, and an infrared anti-collision device is installed between the two gantry frames, which can better protect the safety of people and the sliding gate body.
  • The automatic sliding cantilever gate body is completely suspended in the air and is not restricted by any ground. It is suitable for operation in various environments such as high temperature, high cold, wind, rain, ice, snow, slopes, above grass, above railways, etc.
  • The cantilever sliding gate motor is equipped with an overheating and overload protection device. When the motor reaches a certain temperature in continuous operation, it will automatically cut off the power and enter the protection state to prolong the service life of the motor.
  • The external motor is driven through the gear and the rack, closely matched without slipping, fast heat dissipation and protected by a separate chassis, the appearance is atmospheric and safe, and the maintenance, inspection and repair of the motor are convenient and fast.
  • The automatic cantilever sliding gate body is made of high-quality 6063 aluminum alloy, without welding points, the overall shape is beautiful and generous, durable, and not easy to rust.
  • There is a set of infrared anti-climbing devices installed on the top of the  cantilever sliding gate. When the automatic cantilever sliding gate is closed and someone climbs over the sliding gate, the alarm horn will sound an alarm.
  • Anti-collision function: In the state of closing the  sliding gate, the intelligent infrared anti-collision can stop immediately and return automatically when encountering people or objects.

Cantilever Sliding Gates tructure and function

Cantilever Sliding gate motor QiGong

High-power motor

Adopt high strength aluminum alloy box, strong power, good heat dissipation performance, long service life, slow start and stop, stable operation, sensitive induction.

Cantilever Sliding Gate LED Display QiGong

Intelligent led display

Colorful LED display
Energy saving and power saving Smart display
Standard fixed LED display, windproof and waterproof, more durable.

Cantilever Sliding Gate Material QiGong

High-density aluminum

The automatic cantilever sliding gate main beam is made of high-strength carbon steel or aluminum alloy, and the structure is firm, Hot dip galvanizing and spraying treatment, rich colors, more choices.

Cantilever sliding gate Introduction of function QiGong

Intelligent infrared sen device

Optional anti-pinch, anti-collision function, in the opening/closing operation state, the mechanical anti-pinch switch device is touched, the rubber strip by people or objects will trigger the anti-pinch anti-collision function, touch the automatic cantilever sliding gate can be quickly cut off to stop operation, to ensure safety.
