Barrier Gates

ANPR Intelligent Barrier Gate

Vehicle entrance control gate barrie Compact design Switchable Reader Panel Simple installation Long life cycle MOQ: 2 sets

Smart ParkingProduct family

Barrier GatesProduct series

12 monthsStandard component warranty

Technical supportInstallation & maintenance

PRODUCT OVERVIEW

Get to know the product.

ANPR Intelligent Barrier Gate

Product Introduction

  • Vehicle entrance control gate barrie
  • Compact design
  • Switchable Reader Panel
  • Simple installation
  • Long life cycle
  • MOQ: 2 sets

Boom barrier gate Introduction

Boom barrier gate system is specially used to limit the passage of motor vehicles on the road entrance management equipment, is widely used in highway toll stations, parking lots, residential, enterprises and institutions at the gate, to manage the access of vehicles. The electric boom barrier gate can be used to realize the lifting rod by remote control alone, or it can be automatically managed by the parking lot management system(i.e. ANRP).Boom arrier gates cooperate with license plate recognition system to realize smart parking.

Watch video ↗

KNOW THE DETAILS

Specifications & product information.

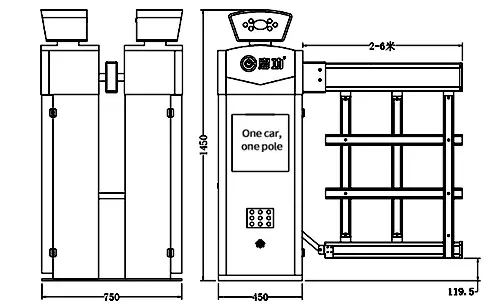

driveway Boom barrier gates automatic boom barrier price KeygonANPR Intelligent Boom Barrier Gate Drawing Keygon

Product Specifications

  • Working voltage: AC220V10% Working
  • temperature: -25°C~70C
  • Working humidity: ≤95%, no condensation (at room temperature)
  • Motor rated power: 200W
  • Motor input voltage: DC24V Enclosure
  • protection level: IPX4
  • Camera pixels: 3 million starlight license plate
  • recognition rate: >99.7% (all-weather)
  • Communication method: TCP/IP, 4G, I0
  • Display: LED screen
  • Fill light power: 9W
  • Fill light on/off control: photosensitive control
  • Barrier length: ≤6 meters
  • Lifting and falling speed: 3 seconds to 10 seconds
  • Dimensions (mm): 340X260X1000 (LXWXH)
  • Working principle: full wheel and full rod rotation
  • Working voltage: AC220V ± 10%
  • Small motor input voltage: AC220V
  • Motor power: 90W
  • Competitive working temperature: -25"C-70C
  • Working humidity: ≤90%, no condensation (at room temperature)
  • Noise requirement: E65 decibels
  • Shell protection grade: IPX4
  • Standard Color: Yellow/Grey
  • Chassis material: The main body of the fuselage is made of high-strength steel plate with a thickness of 1.2mm
  • Brake lever length: 3-6 meters optional
  • Starting time: 3S/6S
  • Reference gate rod specifications: (cross-sectional size): 86mmX44mm

IN USE

Applications & installation.

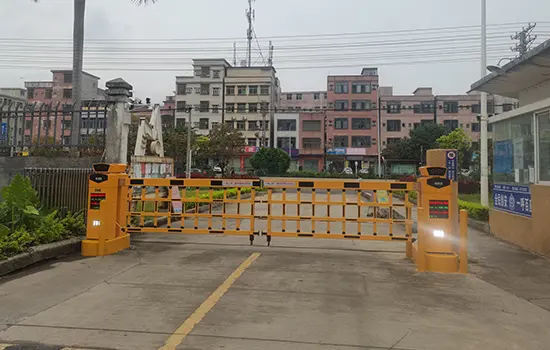

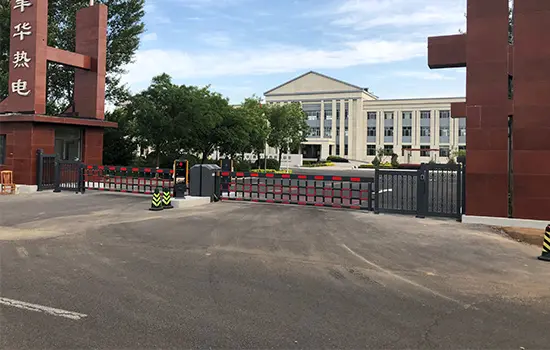

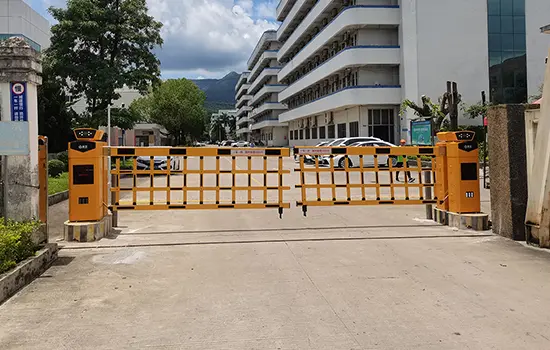

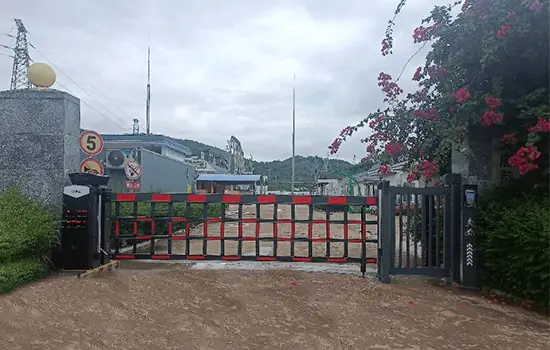

ANPR Intelligent Barrier GateANPR Intelligent Barrier GateANPR Intelligent Barrier GateANPR Intelligent Barrier GateANPR Intelligent Barrier Gate

More Installation Project

A FEW THINGS TO KNOW

Questions?
We’re here to help.

Get the practical details before planning your project.

Talk to our team
What information should I send for a quotation?

Share the product or model, quantity, project location, dimensions and operating requirements. Our team will help confirm the configuration.

What support is available?

KEYGON provides installation guidance, technical troubleshooting and maintenance support. Contact our team by email or WhatsApp.

What is the standard warranty?

The standard component warranty is 12 months. Maintenance after the warranty period is chargeable. Intelligent systems receive free lifetime upgrades.
