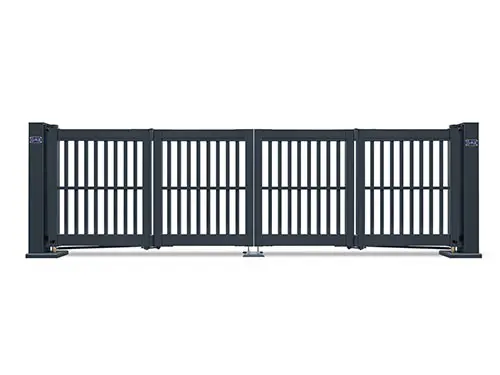

Bi-Folding Trackless Gate

A rail-free folding gate that folds and opens at the same time, keeping the running stroke short and the occupied area small. The aluminium alloy leaf runs without wheels or ground tracks, so slopes, snow, underground cables and railway crossings do not interrupt operation.

4–7 mTotal assembly width (drawing)
100 WMotor power
~12 sOpen / close time
IP53Waterproof grade

Optional equipment: ANPR / licence plate recognition, infrared safety photocells, anti-climb alarms and scrolling LED displays. Select the required accessories with the quotation; basic motor and mechanical protection follow the configuration table.

Plan this entrance

Price and model
start with your opening

Send the clear width, the space beside the opening and how many vehicles pass each day.

Your inquiry is submitted securely to KEYGON. You can also contact us by email or WhatsApp.

Model codes, materials and options are confirmed on the order drawing.

Q19 retractable gate reference videoQ19 伸缩门参考视频

Video model: Q19 Retractable Gate. For a demonstration of this folding gate, contact KEYGON with your selected product and project requirements.

Where is it used?Industrial parks, factories, schools, airports, railway stations, hospitals and commercial facilities.
What decides the model?Clear opening, side space, leaf length, ground conditions and whether the gate is trackless.
What can be added?APP, Bluetooth, RFID, fingerprint, licence plate reading, infrared beams and anti-climb alarm.

Six details that decide how the gate behaves

The six panels below follow the feature graphics and written information on the official Bi-Folding Trackless Gate product page.

Aluminum alloy structure - Bi-Folding Trackless Gate

Aluminum alloy structure

Aluminum alloy full-body gates are stronger and more durable, with no rust or fading, while keeping the folding leaves light for smooth operation.

  • Rust-free aluminum profiles
  • No welding points
  • Long outdoor service life
Hidden screws - Bi-Folding Trackless Gate

Hidden screws

The gate row assembly uses a hidden screw design, so fastener heads are not visible from the surface, creating a clean and elegant appearance.

  • Clean exterior line
  • Tamper-resistant assembly
  • Easy panel replacement
High-power motor - Bi-Folding Trackless Gate

High-power motor

The motor provides high traction torque and supports obstacle-stop / obstacle-return logic, electronic learning limits and a manual clutch for power failures.

  • Obstacle detection and return
  • Electronic learning limit
  • Manual clutch for outages
Built-in bearing gate row - Bi-Folding Trackless Gate

Built-in bearing gate row

Precision-cast 304 stainless steel gate-row components with built-in bearings maintain alignment and resist wear during continuous duty.

  • 304 stainless steel precision casting
  • Built-in bearing
  • High precision and durability
Compact folding action - Bi-Folding Trackless Gate

Compact folding action

The leaves fold and open simultaneously, so the running stroke and occupied space stay small even at wide entrances.

  • Small running stroke
  • Space-saving storage
  • Fast opening and closing
Smart access compatibility - Bi-Folding Trackless Gate

Smart access compatibility

Rolling-code remote control, access control, fingerprint, RFID, ANPR, face recognition, Bluetooth and APP integration can be configured per project.

  • Rolling-code remote control
  • ANPR / RFID / face recognition
  • APP and access-control integration

Specifications and configuration

Review the dimensions and equipment below, then send your site measurements to confirm the final build and selected accessories.

Drawing range: total gate assembly width 4–7 m, height 1.2–2.5 m. Total assembly width is not the clear opening or the length of a single leaf. Confirm post positions and actual clear opening on the order drawing.

Bi-Folding Trackless Gate official parameter drawing
Configuration summary
Drawing dimensionsTotal assembly width 4–7 m; height 1.2–2.5 m
Open / close timeAbout 12 seconds
Motor100 W with obstacle stop / return and electronic learning limit
FrameAluminium alloy profiles, no welding points
StructureGalvanised high-quality steel fasteners and stainless steel structural parts
Ground clearance130 mm; no wheels or rails required
WeightGate row about 19 kg/m; column about 30 kg/m
Waterproof gradeIP53
ControlRolling-code remote; APP, RFID, fingerprint, ANPR, face and Bluetooth options
Warranty12 months standard component warranty
Opening = measured clear span Build = confirmed on order drawing
Nominal model names and series figures are designations. Built length, leaf count and stored footprint are confirmed against the measured site.
Standard and optional configuration
ItemStandard on Bi-Folding Trackless GateOptional
BodyAluminium alloy folding leaf with hidden screwsAnti-climb serrations, custom colour and height
AccessRolling-code remote controlAPP, Bluetooth, RFID, fingerprint, ANPR and face recognition
SafetyObstacle detection and electronic limitInfrared photocells, emergency stop and access interlock
Drive100 W motor with manual clutchSingle-arm or dual-arm operating mode
Service12 months standard component warrantyExtended warranty and on-site installation by agreement

What usually goes wrong at a wide vehicle entrance

Four problems we size and specify against, and the parts of Bi-Folding Trackless Gate that answer them.

Site problem

Slow gates hold up peak traffic

Traditional sliding gates open slowly and can deform over time, creating queues at schools and logistics sites.

Our approach

Fold open in a compact stroke

The leaves fold and open together, so the running stroke and occupied area stay small even at wide entrances.

Configuration · folding leaf + electronic learning limit
Site problem

Ground tracks fail in harsh sites

Roll-up doors and tracked gates struggle with wind load, snow, cables, slopes and railway crossings.

Our approach

Run without wheels or rails

A suspended folding leaf needs no ground track, so dust, water and uneven surfaces do not affect operation.

Configuration · trackless running + 130 mm clearance
Site problem

Wide leaves need light but rigid structure

Heavy panels increase motor load, while weak frames lose alignment and show exposed fasteners.

Our approach

Use aluminium alloy with hidden screws

The full-body aluminium leaf resists rust and fading; hidden screws keep the surface clean and tidy.

Configuration · aluminium profiles + hidden fasteners
Site problem

Unexpected obstacles create risk

A closing gate can strike people, vehicles or forklifts when visibility is poor at a busy entrance.

Our approach

Stop, reverse and release manually

The motor stops or returns on obstacle contact, and a manual clutch allows the gate to be pushed during a power failure.

Configuration · obstacle detection + manual clutch + optional IR
Every configuration above is a starting point. Final scope depends on the measured opening, ground conditions and the access rules at the site.

Where Bi-Folding Trackless Gate is specified

Industrial parks, factories, schools, airports, railway stations, hospitals and commercial facilities — anywhere a wide vehicle opening needs controlled access.

Bi-Folding Trackless Gate installed at a vehicle entrance Indicative reference only. Running gear, side clearance and pedestrian separation are fixed on the site survey.

Industrial parks and factories

Wide vehicle entrances with frequent truck, forklift and staff movement.

Schools and universities

Fast, controlled access during concentrated arrival and dismissal periods.

Railway and bus stations

Rail-free operation where tracks, cables and uneven surfaces are present.

Airports, hospitals and ports

Low-maintenance access with smart control integration.

Deployment reference

Series application and installation references. Match the final leaf style, finish and access equipment to your project specification.

Bi-Folding Trackless Gate reference installation 1
Bi-Folding Trackless Gate reference installation 2
Bi-Folding Trackless Gate reference installation 3
Typical configuration
Bi-Folding Trackless Gate, aluminium alloy leaf, remote control and project-specific access options
Site types
Industrial parks, factories, schools, airports, railway stations, hospitals and commercial facilities
Status
Series application reference

Buying questions

How is the gate sized for my entrance?
Drawing range: total gate assembly width 4–7 m, height 1.2–2.5 m. Total assembly width is not the clear opening or the length of a single leaf. Confirm post positions and actual clear opening on the order drawing. Send the measured clear opening separately, together with the folding and side clearance.
Does it need wheels or a ground track?
No. The leaf is suspended and folds open without wheels or rails, so it is not restricted by railways, ice and snow, underground cables or slopes.
What material and finish are used?
The frame and inner vertical members are high-quality aluminium alloy profiles with no welding points. Fasteners are high-quality steel, structural parts are stainless steel, and the surface is galvanised and high-temperature painted.
What safety functions are available?
The motor stops or returns on obstacle contact, uses electronic learning limits, and includes a manual clutch for outages or maintenance. Infrared photocells, anti-climb serrations and emergency stop can be added.
Which access methods can be connected?
Rolling-code remote is standard. Fingerprint, password, swipe card, licence plate recognition, face recognition, Bluetooth and mobile APP access can be configured per project.
How are the final specification and accessories confirmed?
Confirm the total assembly size, measured clear opening, ground condition, power supply and required access methods with KEYGON. The quotation and approved order drawing identify the supplied equipment and accessories.
What is the delivery time and warranty?
The standard component warranty stated for this range is 12 months. Confirm current lead time, shipping, installation responsibilities and any agreed extended cover with the quotation.
